The City of Edmonton follows the same sequence of work activities as the other sanitary trunk sewer work underway across Edmonton, these include: (1) Stabilizing the situation (ensure safety, reduce risks), (2) Assessing the issue (info gathering/inspections, and assessment) (3) Engineering Design and (4) Construction.
100 Avenue Trunk Sewer Repair
- Hand tunnel excavation and pipe installation on 100 Avenue bypass tunnel is complete. Crew are working in the 12ft shaft on 100 Avenue to complete the manhole structure to the ground surface
- Rehabilitation of the existing 1950mm sewer will begin once the flow is diverted to the new bypass tunnel
- Current odour mitigation measures include using the air scrubber at 153 Street as well as covering the shaft when not in use by workers
Concrete trucks will temporarily block the pedestrian crosswalk at 100 Avenue as the 12ft shaft is backfilled. Crew on site will be able to assist and guide pedestrians around the trucks as necessary. 100 Avenue will remain accessible to vehicular traffic.
This work is expected to last for about two to three hours at a time on Tuesday August 8 and Wednesday August 9.
New Bypass Tunnel on 151 Street between 99 Avenue and 100 Avenue
Approximately 10m of pipe remains to be installed from the tee connection at 99 Avenue back to the intermediate shaft between 99 Avenue and 100 Avenue. On Tuesday August 8, the crew plans to install the final pieces of pipe. This requires the removal of the plug covering the drop connection to the existing sewer.
There may be some odour experienced nearby for the period during which the plug is removed and the final piece of pipe is connected.
100 Avenue Pump Station
Work for the removal of the pump station was started on January 23, 2017.
A third crew on site was mobilized on July 24 to resume decommissioning of the pump station; however, with the recent rainfalls, sewage flow into the pump station was discovered, which does not permit worker entry to safely complete the manhole construction.
The crew is currently working with the drainage operations team to divert the flows back to the existing trunk sewer so work on the construction of the manhole can resume.
Progress of overall construction can be found on the August 4 update.
Drainage Transfer to EPCOR
On April 12, 2017, City Council approved the decision for the City to transfer Drainage Services to EPCOR, effective September 1, 2017. Prior to this date, a community bulletin will be distributed to inform residents on how they will continue to be engaged and how EPCOR will communicate project information. The drainage team will continue to communicate and engage with the task force groups and residents in neighbourhoods with drainage projects throughout this process.
The air scrubber plays a major role in odour mitigation for the 100 Avenue shaft repair. In addition, there are also chemical injections (hydrogen peroxide injections and nitrate injections), into sewers of nearby pump stations. Hydrogen peroxide and nitrate will reduce the effects of hydrogen sulphide, a chemical created in sewer systems. This will help reduce odours and make the environment safer for our workers.
The real-time ambient air monitor live stream is now online.
On May 9, 2017, the City held an open house for the West Jasper Place/Sherwood community sewer rehabilitation work. The session included a presentation which provided project information and progress.

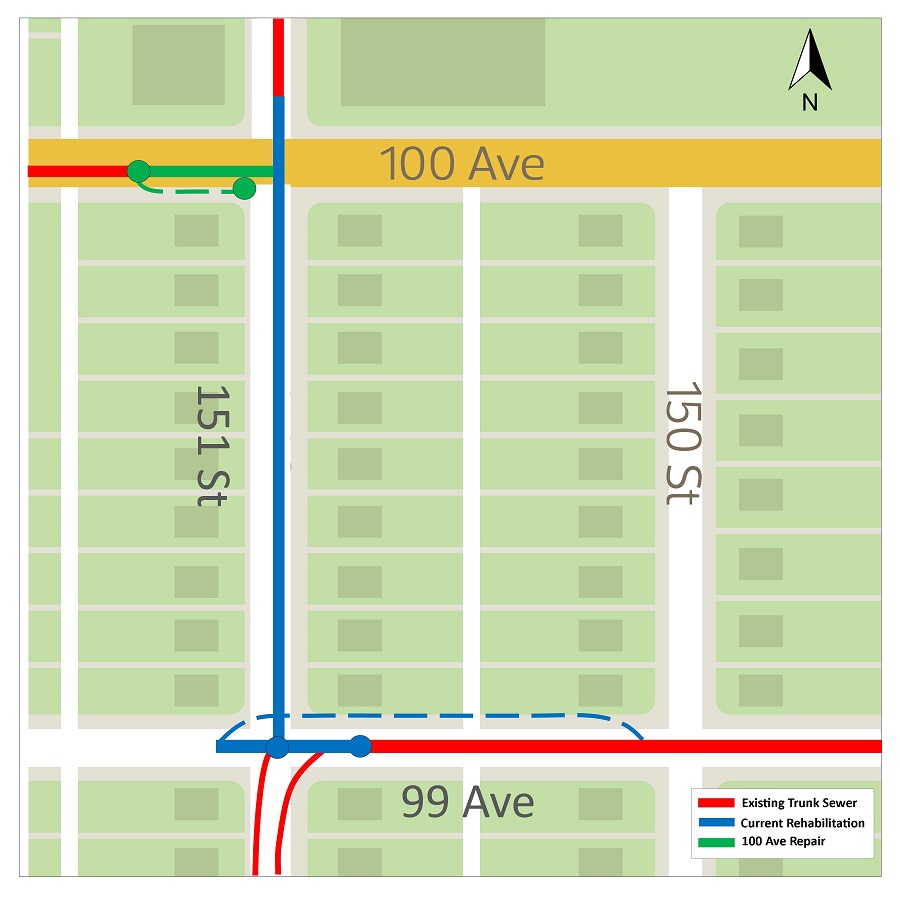

The City has identified that the 1.5 meter diameter sanitary trunk sewer along 151 Street from 100 Avenue to 99 Avenue is in poor structural condition and requires immediate rehabilitation. Most of the work for this project is completed underground, but several shafts are required to access the sewer line.
- The sanitary trunk sewer along 151 Street from 100 Avenue to 99 Avenue requires immediate rehabilitation given its poor structural condition.
- Two shafts are required along 151 Street from 100 Avenue to 99 Avenue to access the deep trunk for rehabilitation. The shaft at 99 Avenue was completed in 2015. The rehabilitation work will be completed underground through these two shafts.
- A sewage bypass pipe will be installed along 151 Street from 100 Avenue to 99 Avenue.
What is involved with this project?
The project consists of the installation of two shafts that connect the existing sanitary sewer system to the deep tunnels that run along 151 Street. City crews will install a shaft at the intersection of 151 Street and 99 Avenue and a shaft north of 100 Avenue at 151 Street. The rehabilitation work will be completed underground through these two shafts.
Roadways and any other areas that are disturbed by the construction will be restored to their initial condition at the completion of the projects.
During construction, the intersection of 151 Street and 99 Avenue will be closed and only local traffic access allowed. North of 100 Avenue, 151 Street will be closed to traffic. During non-rush hour traffic, there will be minor disruptions to east-west bound traffic at the intersection of 100 Avenue and 151 Street. The City will minimize traffic disruptions as much as possible.

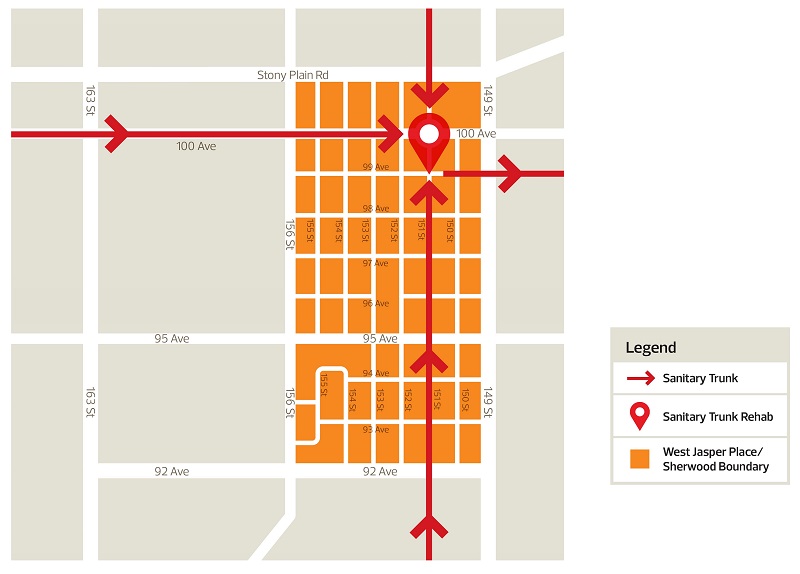

Several condition assessments are being completed for sanitary trunk sewers in the area of 151 Street and 99 Avenue. The assessment of the trunk sewer along 99 Avenue from 151 Street to 142 Street has now been completed and the first 50 m (165 ft) has been identified to be in critical condition. The trunk sewer is a critical piece of infrastructure as it services a large portion of west Edmonton, and this sewer will need to be rehabilitated.
While the design for the rehabilitation of the 99 Avenue trunk sewer proceeds, a bypass tunnel will be constructed (as a precautionary measure) to allow flow to bypass the portion of the existing trunk sewer that is in the worst condition. This new tunnel will also help with Phase I construction by allowing work to continue if it rains, and it will form a part of the ultimate rehabilitation solution of the existing sewer.
The bypass tunnel will require a second shaft about 50 m (165 ft) east of the current work site at 151 Street and 99 Avenue.
